●5-axis milling machine system with 5-axis simultaneous machining
●Automatic tool change, compatible with three types of milling cutters, and open tool system
●High-precision servo motor with ultra-long service life and durability
●Spindle maximum speed up to 60,000 r/min with high repeat positioning accuracy
●Reasonable structure with excellent anti-seismic performance
●Able to clamp discs of 98mm specification
●Greatly reduces the thickness of zirconia blocks used for long bridges and lowers the requirements for dentists' tooth preparation

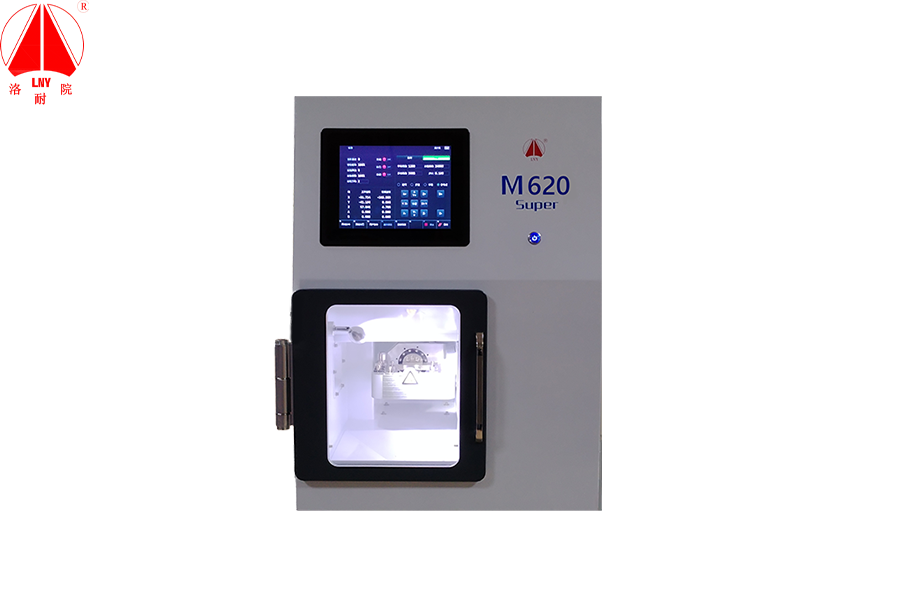

Specification | M620 |
Machinable Materials | Zirconia, Wax Pattern,PMMA |
Machinable Types | Inner Crown, Full Crown, Bridge, Post, Inlay, Zirconia Veneer |
XYZ Axis Motors | High-precision Servo Motors |
Operation Speed | XYZ Axis: 2,400 mm/min |
Maximum Speed | XYZ Axis: 6,000 mm/min |
Spindle Speed | 60,000 r/min |
Rotary Axis Stroke | A: 360°; B:±15° |
Number of Tools | 3 pieces, supporting automatic tool detection and damage inspection; |
Tool Size | Tool Shank Diameter: 3 or 6mm, Length: 45 to 50mm |
Weight | 160kg |
Control Command Set | NC Code |
Power Supply Requirement | 220V AC Power Supply |
Accessories Provided with the Equipment | High-power Low-noise Vacuum Cleaner; Trial Machining Materials; Milling Cutters |
Communication | USB |
Computer Configuration Requirements | 64bit Windows 7, i7 CPU, GTX1060 or above graphics card; |
