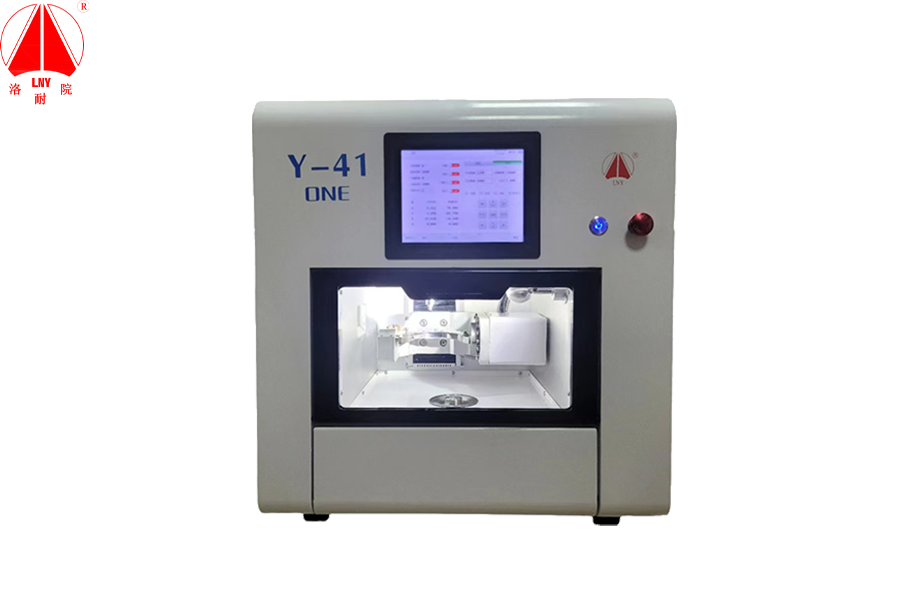

●4-axis milling machine system with simultaneous machining
●Desktop integrated design with built-in auxiliary copper structure
●Automatic tool change, compatible with three types of milling cutters, and open tool system
●High-precision servo motor with ultra-long service life and durability
●Spindle maximum speed up to 60,000 r/min with high repeat positioning accuracy
●Composite fixture design for clamping 98mm-specification discs
●Supports ARUM interface, capable of processing 3 glass ceramics or 3 personalized abutments in one batch
Specification | Y-F1 |
Machinable Materials | Zirconia, Wax Pattern,PMMA, PEEK, Glass Ceramics, Pre-fabricated Abutments |
Machinable Types | Inner Crown, Full Crown, Bridge, Post, Inlay, Veneer, Single Pre-fabricated Abutment, Framework |
XYZ Axis Motors | High-precision Servo Motors |
Operation Speed | XYZ Axis: 3,000 mm/min |
Maximum Speed | XYZ Axis: 6,000 mm/min |
Spindle Speed | 60,000 r/min |
Rotary Axis Stroke | A: 360° ±30° |
Number of Tools | 3 pieces, supporting automatic tool detection and damage inspection; |
Tool Size | Tool Shank Diameter: 3 or 6mm, Length: 45 to 50mm |
Weight & Volume | 100kg; 560mm620mm580mm |
Control Command Set | NC Code |
Power Supply Requirement | 220V AC Power Supply |
Accessories Provided with the Equipment | Trial Machining Materials; Milling Cutters |
Communication | USB |
Computer Configuration Requirements | Designated laptop or brand desktop computer purchased via JD channel; |
