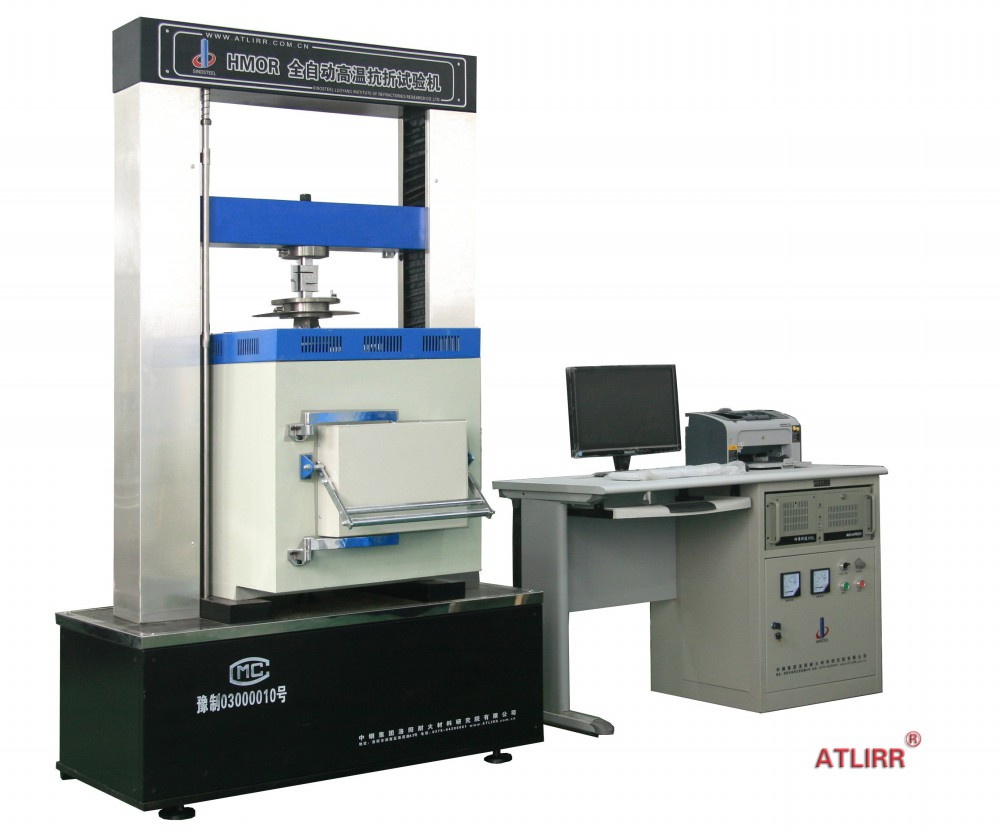

HMOR tester has been designed according to international standards ISO5013, ISO5014 and Chinese standard GB/T3002, mainly to measure the hot modulus of rupture (HMOR) of refractories at high and room temperature. It can be classified by service temperature, max.load, protective atmosphere.
HMOR series HOT MOR tester, with exquisite structure design, High performance business computer display, easy in operation and maintenance, reliable in performance and self-protection in case of failure, is the high and new-technology industrial product which has been granted authorization in China.
Selection Basis: Test temperature; Maximum load; Test atmosphere; Loading mode; etc.
Latest technology: Test temperatures up to 1600°C or higher;Controlled atmosphere experiment.
Patented technology: Buried carbon in saggar; Controllable atmosphere test furnace (can pre-discharge air, dynamic sealing); Continuous sample delivery.
Main parameter
Model Specifications | HMOR14-610 HMOR16-610 HMOR14-610Q HMOR16-610Q | HMOR14-620 HMOR16-620 HMOR14-620Q HMOR16-620Q | HMOR16-300SF | HMOR16-300LX |
Service temperature | 14 model 1350, 16 model 1550 | |||
Max.Load | 10 or 20 | |||
Measure accuracy | 0.1 | |||
Temp-controlling accuracy | ±1 | |||
Test atmosphere | Air atmosphere/sample embedded in graghite/protective atmosphere(N2,Ar,etc.) | |||
Sample number,mm、pcs | 4 or 6 | unlimited | ||
Sample size | 25x25x50 | 10*4*120 | ||
