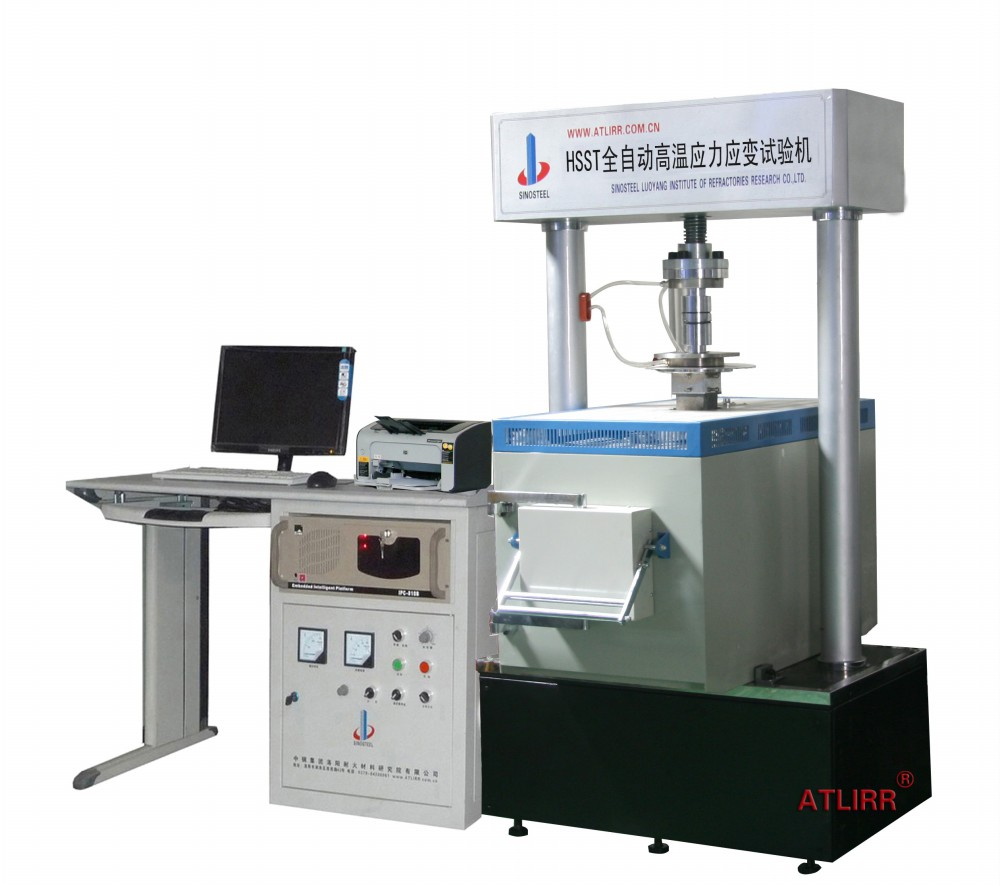

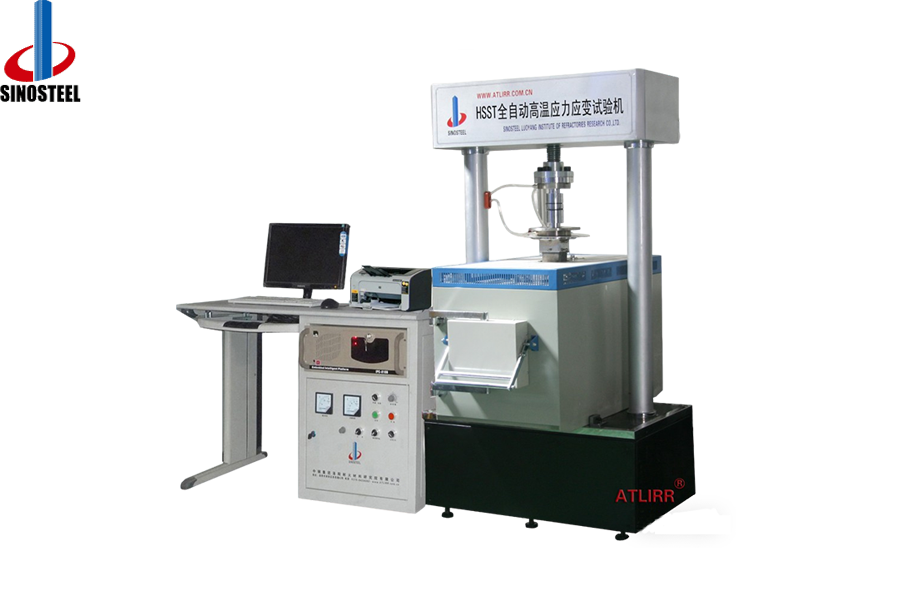

The tester is used mainly to test stress and strain of refractory products at high temperature and also can appraise hot modulus of rupture of refractories.
Main parameter
Model Specifications | HSST16-610 HSST16-610Q | HSST16-620 HSST16-620Q |
Service temperature | 1600 | |
Max.Load | 10 or 20 | |
Measure accuracy | 0.1 | |
Temp-controlling accuracy | ±1 | |
Test atmosphere | Air atmosphere/sample embedded in graghite/protective atmosphere(N2,Ar,etc.) | |
Sample number,mm、pcs | 4 or 6 | |
Sample size | 25x25x150、40x40x160 | |
