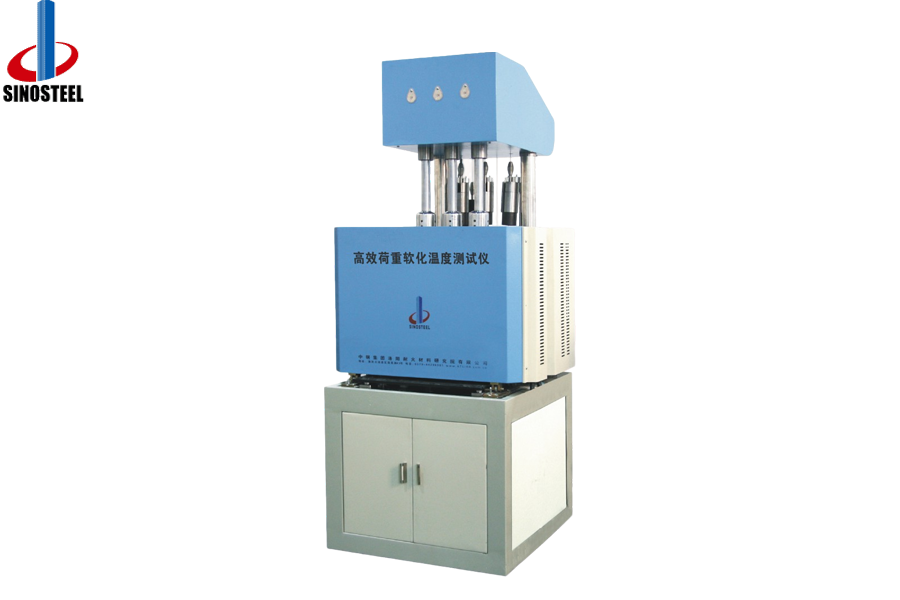

HRY tester has been designed according to relative Chinese standard GB/T5073 Test method for creep in compression of refractory products, GB/T5989 Refractory products-Determination of refractoriness - under-load ---Differential-with rising temperature and ISO1893, mainly to determine the refractoriness under load(RUL) and creep of refractory materials (containing carbon or not) at 1700℃ and 1600℃ respectively.
Control mode:
PC commercial computer, database management, can realize a microcomputer control multiple devices at the same time.
Q series: atmosphere test, carbon-containing material test anti-oxidation optional, optional patent anti-oxidation mechanism.
Main parameter
ModelSpecifications | HRY-03P |
|
Deformation range,mm | 0-10 | |
℃Service temperature,℃ | Lotus SoftRUL 1700 | |
Deformation accuracy,％ | 0.1 | |
Test method | Diffierential | |
Load range,mpa | 0-0.5 | |
Test atmosphere | Air atmosphere; | |
Sample number,pc | 1 | 1--3 |
Furance structure | Classic clock cover | Energy saving activation |
