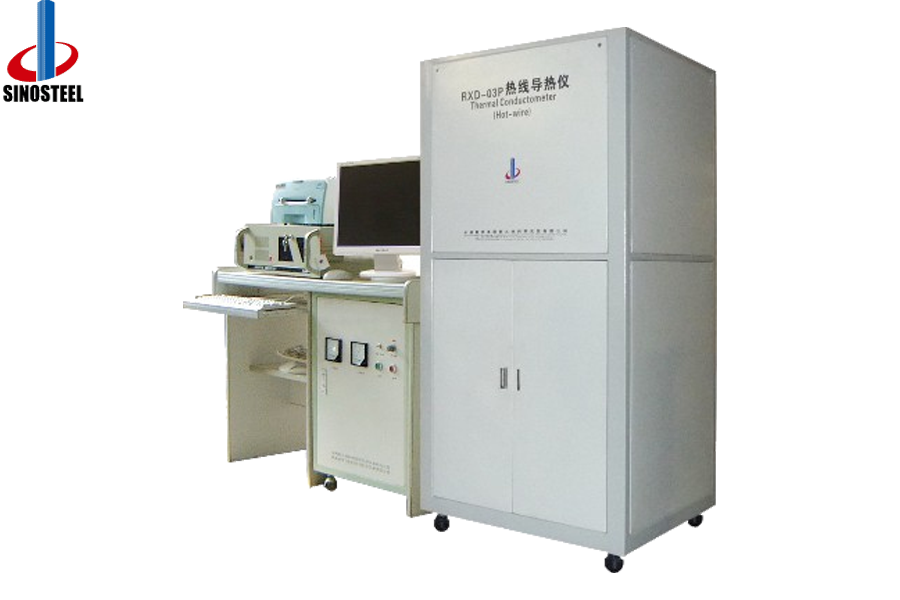

RXD testers have been designed according to relative Chinese standard GB/T5990 Refractory materials -determination of thermal conductivity - Hot-wire method, which is equivalent to 1SO 8894-1 & 1S0 8894-2, MOD. The testers are used to determine thermal conductivity of refractories by cross hot-wire and parallel hot-wire method respectively. The fields of their application are almost include all refractories, such as alumina-carbon brick, magnesia-carbon brick, carborundum products, unshaped refractories etc.
Main parameter
ModelSpecifications | RXD-03 | RXD-04T |
Service temperature,℃ | Room temperature -1250 | Carbon containing materials in the room: room temperature -800 |
Thermalconductivity,W/m.k | 0.2-20 | |
Measured materials | Non-conductive and non reducing refractory materials | All refractory materials |
Test method | Parallel hot-wire | |
Thermal diffusion | 0.5～5mm²/s | |
Specific heat capacity | 0.5～10J/g•k | |
Standard | ISO8894-2，GB/T 5990 | |
