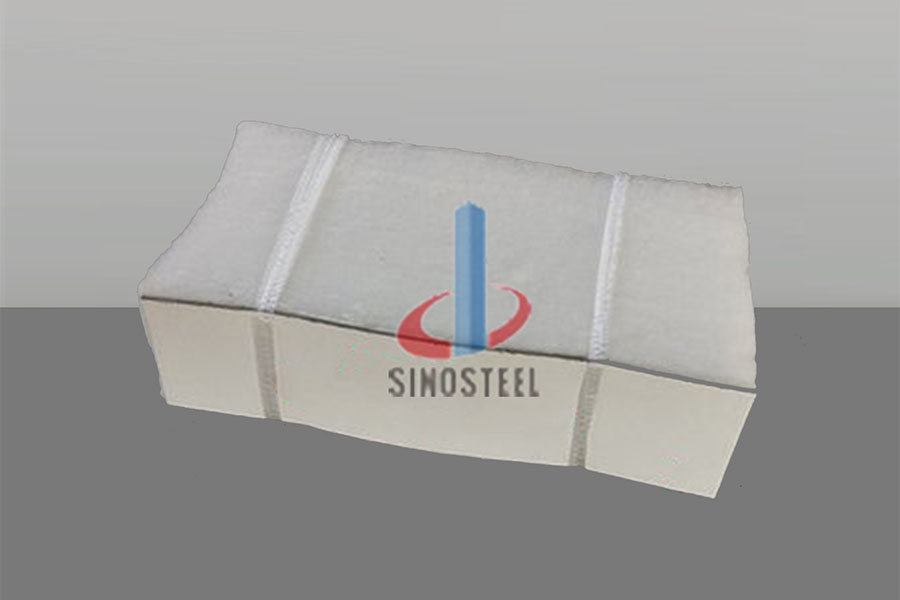

Polycrystalline alumina fiber veneer block

Polycrystalline alumina fiber veneer blocks are made by processing, cutting, and compressing polycrystalline alumina fibers through special techniques. It has good elasticity and flexibility, and can maintain its original toughness even after long-term use in oxidizing or neutral atmospheres.

Product Introduction

Polycrystalline Alumina Fiber Module-cuted is from polycrystalline alumina fiber by special process finishing cutting, compression formed. Does not contain any binders or other ingredients, with excellent elasticity and flexibility, the maximum temperature up to 1600 ℃. They oxidizing atmosphere, the neutral atmosphere, the long-term bear this temperature, still maintain their original toughness, strength, flexibility and fiber structure, and non-residue ball, can be used by a variety of high-temperature industrial furnaces hot face lining paste, has a special significant insulation performance .

Product specification

Product brand

Chemical compositions

Linear
shrinkage on heating

Thermal
conductivity

Volume
weight



A1203

Si02

 A1203 Si02







1600

71~73

29~27

99.5

≤2

≤0.14
(1200℃)

65-200









(1500℃)





Application

Used as module-cuted of working lining for various furnace such as heating furnace, soaking furnace, heat treatment furnace, and ceramic fast firing kiln, and sealing materials for furnace door or cover.



Used as modile-cuted of working lining for various furnace such as heating furnace



soaking furnace,heat treatment furnace,and ceramic fast firing kiln,



and sealing materials for furnace door or cover.

Product
specification

Standard:200x100x30-80(Length *width*thickness)



In accordance with design drawing of user

Application

Used as module-cuted of working lining for various furnace such as heating furnace, soaking furnace, heat treatment furnace, and ceramic fast firing kiln, and sealing materials for furnace door or cover.

Product specification

Standard: 200×100×30-80 (Length * width * thickness)

In accordance with design drawing of use
