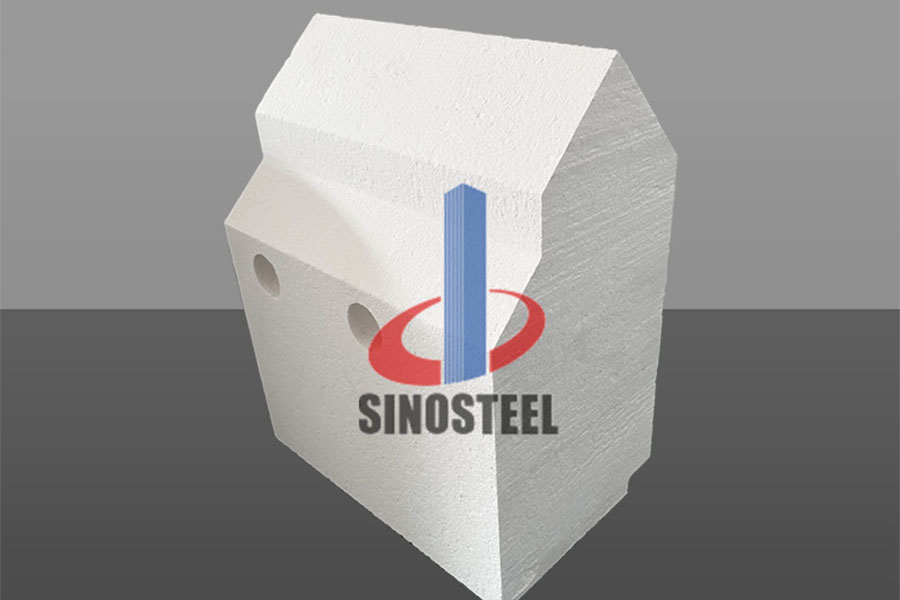

The product series of polycrystalline alumina fiber shaped products mainly uses polycrystalline alumina fiber as the main raw material, compounded with fillers and adhesives. Formed through a combination of suction and pressure, produced and processed according to user requirements for shape, size, and bulk density, with high dimensional accuracy and precise shape.
Product Introduction
Product Parameters
Classification temperature | 1500 | 1600 | 1700 | 1800 | |
Max.service temperature | 1500 | 1600 | 1700 | 1800 | |
Long-term service temperature | ≤1400 | ≤1500 | ≤1600 | ≤1700 | |
(furnace temperature),℃ | |||||
Volume weight(in accordance with design | 380-700 | 400-700 | 400-700 | 450-700 | |
Thermal conductivity | 0.15 | 0.15 | 0.155 | 0.16 | |
Linear | 1400℃ | ≤0.3 | / | / | / |
24h | |||||
| 1500℃ | <2 | ≤0.3 | / | / |
24h | |||||
| 1600℃ | / | <2 | ≤0.3 | / |
24h | |||||
| 1700℃ | / | / | <2 | ≤0.5 |
24h | |||||
Application
Used as thermal and electric insulating materials for high temperature electric furnace and heating units of equipment, and lining materials for tunnel kiln and roller kiln
Product specification
in accordance with design drawing of user
The products are fabricated by suck-press combined method using polycrystalline alumina fiber as main starting materials, adding packing materials and binders. Special shaped products with different volume weights and specifications can be produced in accordance with design drawing of user.The products can long term serve at 1 700 ℃ and at 1 800 ℃ of the maximum, and have been used in many kilns to substitute imported products, saving energy and cutting cost.
