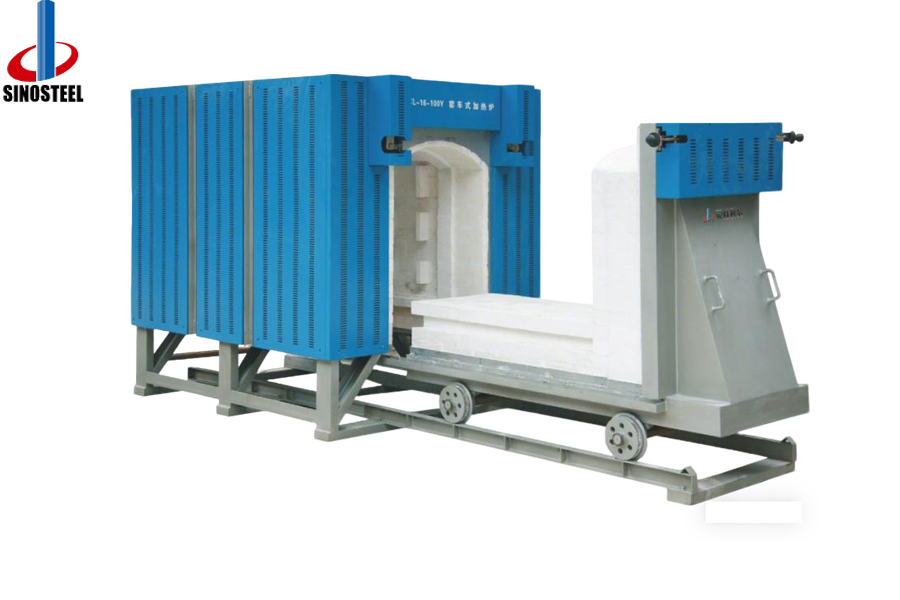

YCL kiln car type heating furnace

Operating temperature: 1300/1400/1500/1600/1700 ℃

Measurement and Control Method: T2100 Intelligent Controller/LCD Color LCD Touch Controller/IPC610 Industrial PC

Power supply: AC380V， Single phase or three-phase

Measurement and control points: single point, two points or multiple points

Heating rate: 0-10 ℃/min or as agreed in the contract

Number of temperature control sections: 50 sections

Kiln Car Furnace Patent

Main parameter：

Product Model	Furnace Chamber SizeMM	Remarks
YCL-13-150	2000* 600-800* 600-800	Mullite furnace lining, silicon carbide rod heating element Door opening method: Lift-up type
YCL-13-150	2000* 600-800* 600-800
YCL-17-120	1200600600	Hollow sphere furnace lining, silicon molybdenum rod heating element Door opening method: Side opening or bottom opening
YCL-17-160	1600600600	Hollow sphere furnace lining, silicon molybdenum rod heating element Door opening method: Side opening or bottom opening
YCL-17-200	2000* 600-800* 600-800	Hollow sphere furnace lining, silicon molybdenum rod heating element Door opening method: Side opening or bottom opening
