NHD Refractoriness Tester is used to determine refractoriness of refractory materials below 1900℃, which has been developed according to Chinese & ISO relative standard(GB/T 7322,IS0 528 Test method for pyrometric cone equivalent (refractoriness) of refractories).

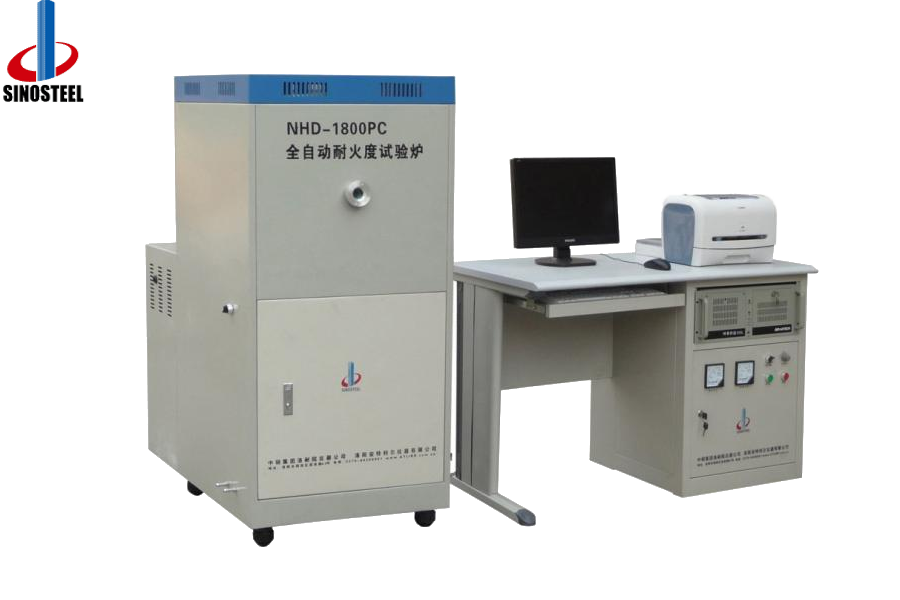

It can be equipped with special infrared radiation pyrometer, the whole machine is easy to operate and has excellent performance.NHD-1800PC with ZL 2011 2 0124995.4 and other patents, using GM1900 new ultra-high-temperature heat generator, all-fiber energy-saving furnace lining, high-temperature thermocouples, the temperature cone and the test cone of the deformation of the imager monitor, real-time display and record of all kinds of parameters, the test process is fully automatic.The whole machine is easy to operate, safe, energy-saving, excellent performance
Main parameter
ModelSpecifications | NHD-1809PC |
Service temperature，℃ | 1800 |
Temp-controlling mode | Microcomputer measurement and control |
Mounting mode | Lower part of furnace body |
Rotating rate,rmp | 0-3 |
Structure | Closed structure, safety protection |
Heating rate,℃ | 0-10 |
Powe,kW | 6 |
